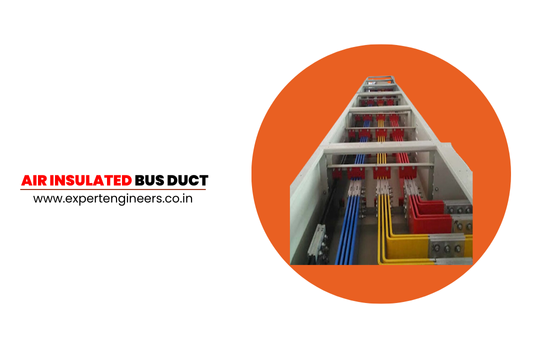

Air Insulated Bus Duct

Air Insulated Bus Duct

Bus Duct is used for the effective and efficient supply of electricity in mostly industrial locations. Copper or Aluminum is used for the conductor of Bus Duct that be insulated and enclosed completely for protection against mechanical damage. The Duct is also dust and vermin resistant.

We have the expertise in manufacturing and supplying premium quality Copper/ aluminum Bus Ducts. Fabricated using high quality raw material, these electric bus ducts are quality tested with well-defined parameters ensuring their full-fledged assurance. The wide range of bus ducts which our company provides are highly durable and reliable group of conductor bus bar. It is available in 415V segregated bus duct, non-segregated bus duct forms manufactured from high grade raw material, these electric bus ducts are quality tested on well-defined quality parameters before being delivered to our clients based across the nation.

We also meet customized requirement and offer these at highly competitive prices.

Category:

Technical Specifications

Technical Specifications IEC-439 Part 2 and IS 8623 Part 2
System 415 V, 3 Phase, 4 wire, 50 Hz or 3 Phase 3 Wire
Rated Insulation Voltage up to 1000V
Rated Current up to 6300 A
Type Totally enclosed, Air insulated. Non-segregated
Ingress Protection IP 42, IP 52, IP 54, IP 65
Bus Bars Material Electrolytic Grade Aluminum or Copper Aluminum, Conductivity > 58%, Copper > 98%
Enclosure CRCA Sheet / Aluminum Housing (optional)
Enclosure Paint Finish Epoxy Powder Coating. RAL-7035 (other shades as required)
Bus Bar Insulation Black PVC Insulation with color coding for phase identification Black Matt paint for Bus Bar, Rating 2500A and above
Earthing Separate Earth bus provided on enclosure

Rating

  1. 415V to 1.1 kV,
  2. 1 kA to 7 kA,
  3. 100KA for 1 sec

Salient Features

  1. 3 Ph 3 wire or 3 Ph 4 wire low voltage Busduct,
  2. Mostly Flat Aluminium or Copper busbar used with FRP / SMC / Epoxy insulator as Busbar support.
  3. Ability to withstand large electro-dynamic forces during abnormal operating conditions.
  4. ASTA Cerified Type tested design as per IEC standard.

Application

Low voltage Power distribution from Transformer and Switchgear Connections and across segments
