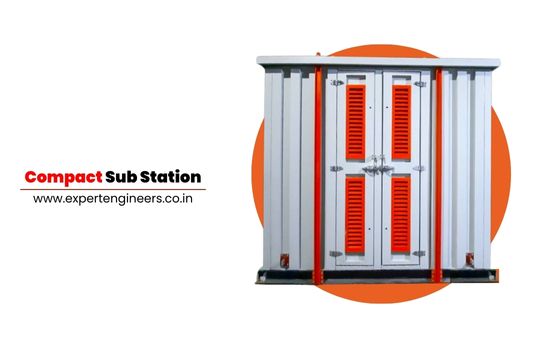

Compact Sub Station (CSS)

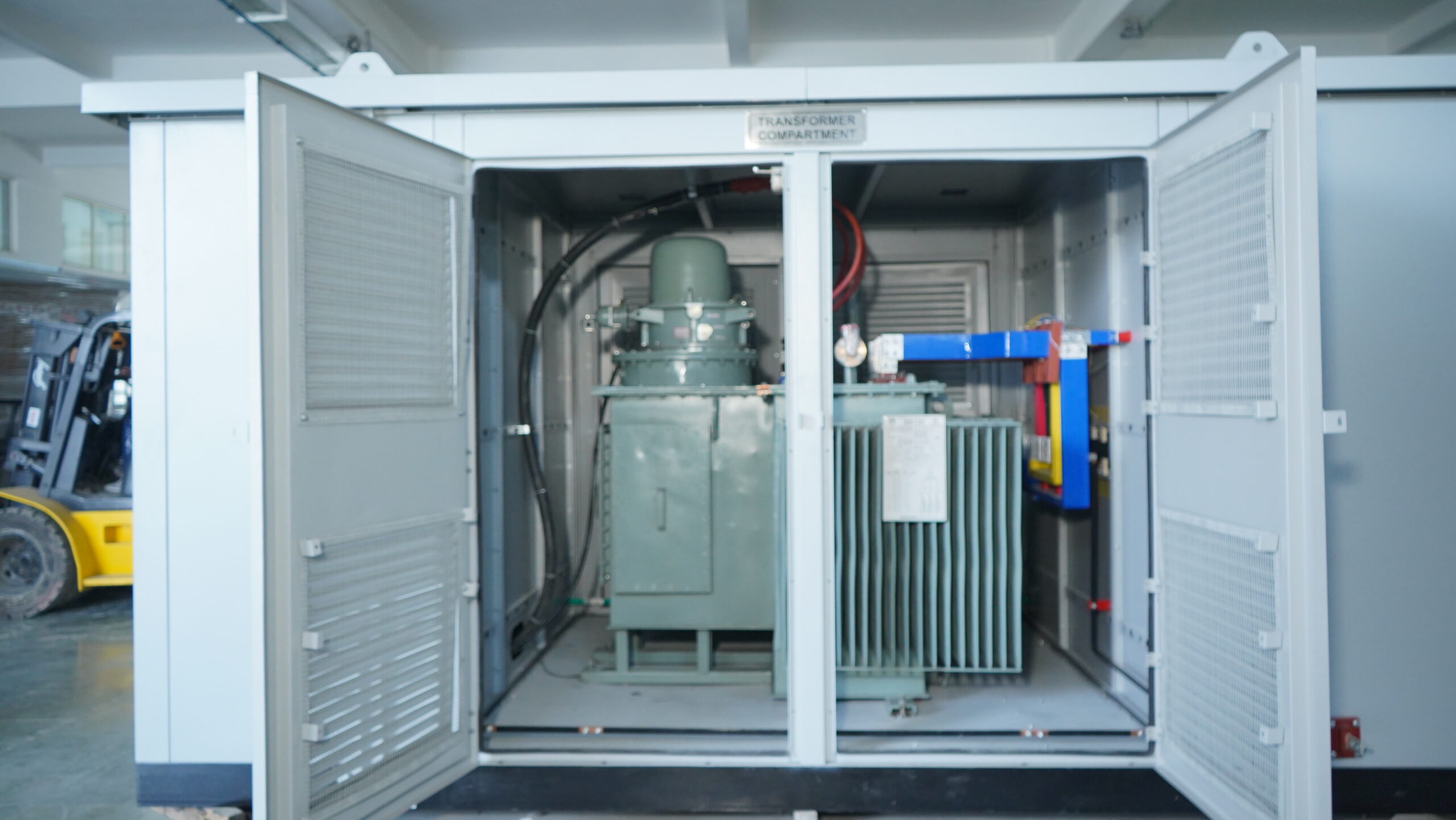

Compact Sub Station (CSS) - Image 2

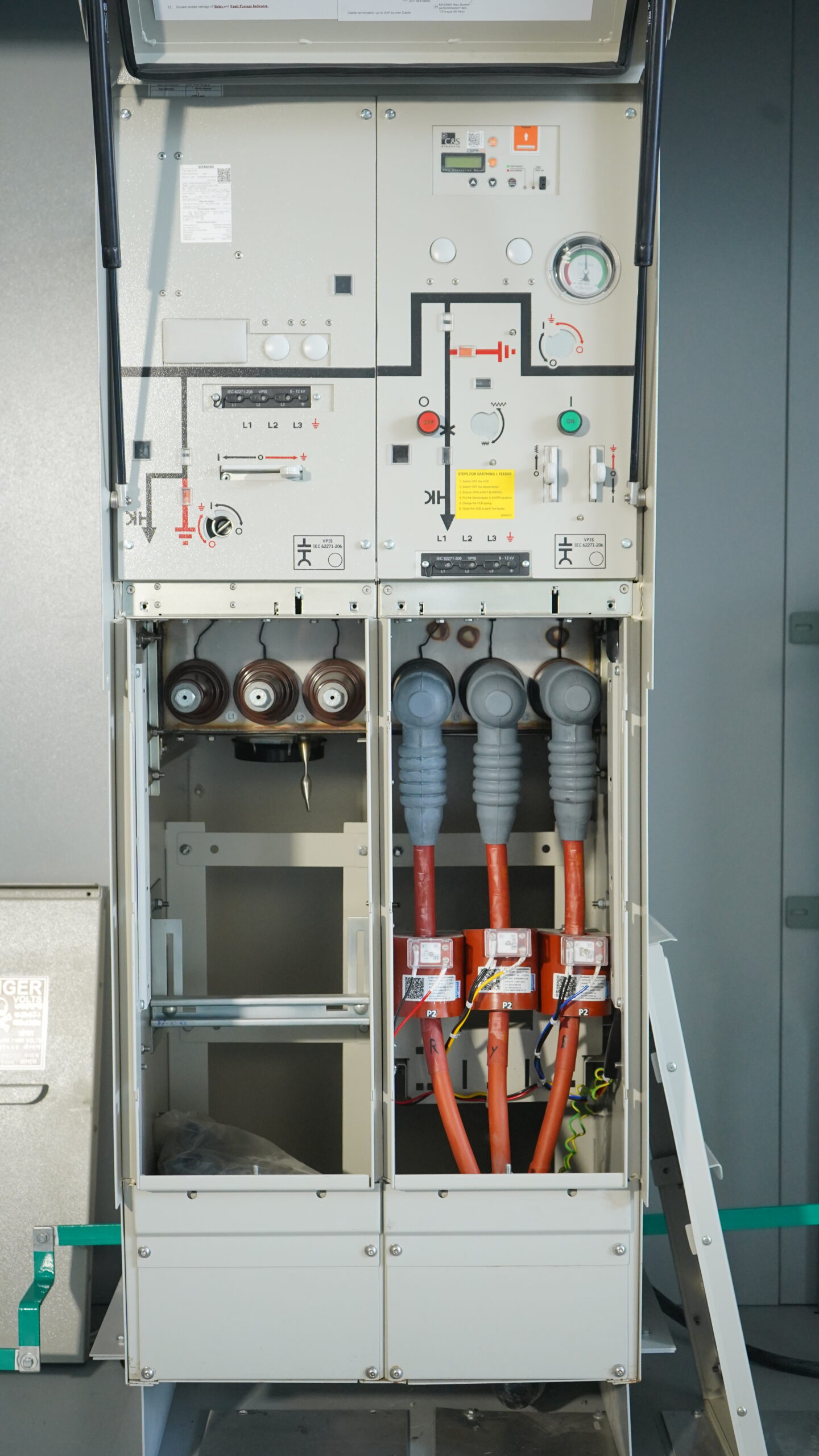

Compact Sub Station (CSS) - Image 3

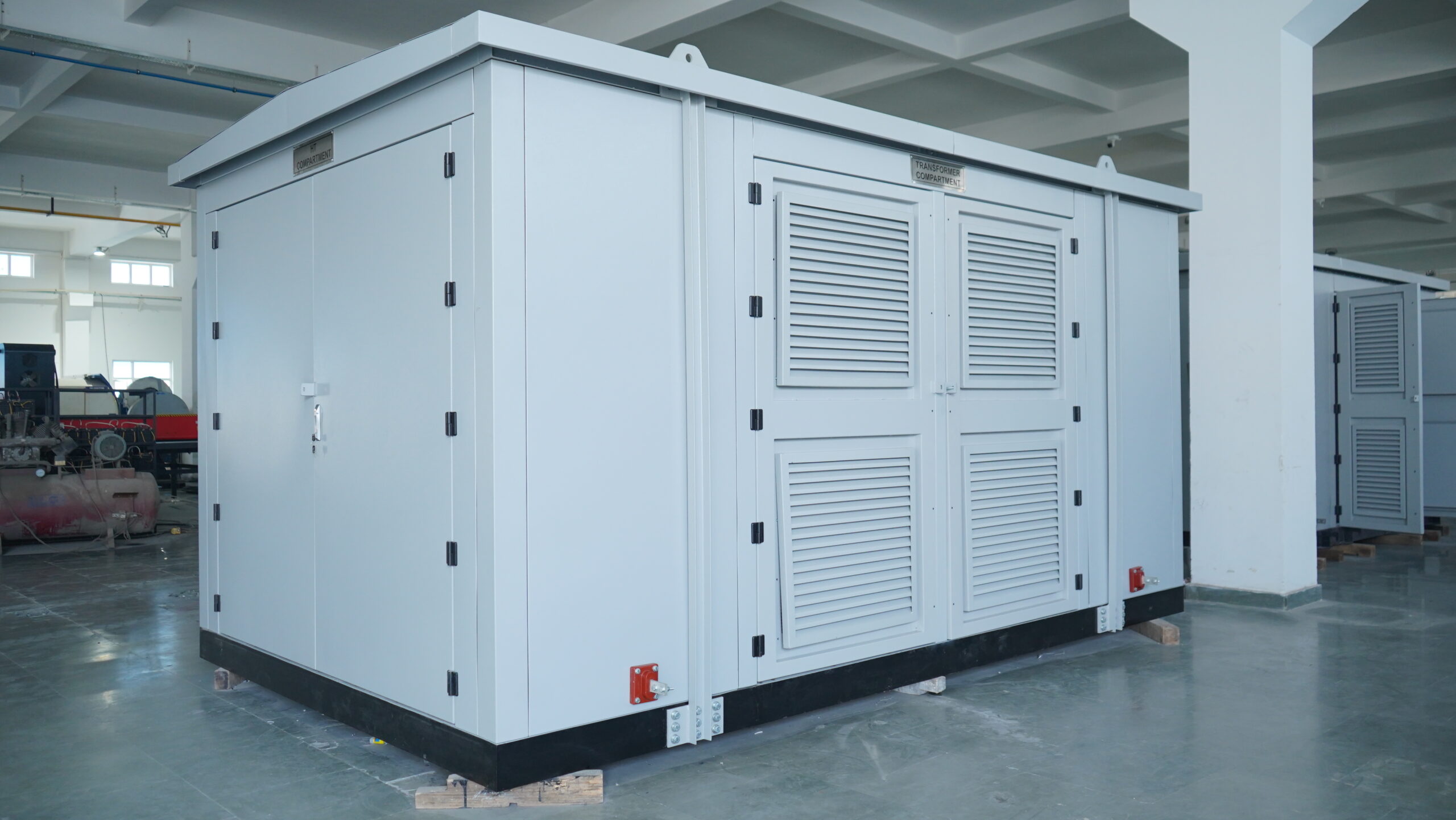

Compact Sub Station (CSS) - Image 4

Compact Sub Station (CSS)

We, Expert Engineers, is proud to announce that we have been officially appointed as a Franchisee for the manufacture and sale of Compact Sub Stations (CSS) in Nqube design (Lauritz Knudsen).

Compact Substation will take up just around a quarter of the area required for an open installation. It can be mounted in the basement, the yard, or on the roof.

What makes compact substations an ideal choice over traditional substations is that they are a complete solution that can easily fit into any configuration based on the customer’s needs.

We deliver compact substation transformers to different electrical utilities and industrial & commercial sectors.

Category:

Electrical characteristics

  • Rated voltage (kV) : 12KV
  • Rated insulation level(kVrms/kVp) : 28/75
  • Rated frequency (Hz) : 50

Ratings

  • Oil filled transformer : 63 kVA to 2500 kVA
  • HV voltage : 11kv
  • LV voltage : 433V, 3 Phase
  • Frequency : 50Hz
  • Dimension –
    • Upto 1000 kVA – 2100 mm (W) x 2950mm (L) x 2100mm (H)
    • 1250 kVA to 2500 kVA — 2300 mm (W) x 4200mm (L) x 2100mm (H)



Dry / Cast ReSin / VPI

  • Transformer : 63 kVA to 2500 kVA
  • HV voltage : 11 kV
  • LV voltage : 433V, 3 Phase
  • Frequency : 50Hz
  • Dimension –
    • Upto 1000 kVA – 2100 mm (W) x 2950mm (L) x 2100mm (H)
    • 1250 kVA to 2500 kVA — 2200 mm (W) x 4200mm (L) x 2100mm (H)
  • RMU : 11 kV, 3 Phase, 50 Hz Swltch-630A, 12kV, 21kA, 3 phase Breaker-200A/630A, 12kV, 21kA, 3 phase
  • Transformer : 11kV/433Vr 3phase, 50Hz with off circuit tap switch +5% to -10% in steps of 2.5% Vector Group Dyn 11
  • LV breaker : 433V, 3 Phaser 50Hz
  • Incomer breaker : 400A to 2500A, 50Hz
  • Distribution MCCBs : 100A to 800A, 50kA

SALIENT FEATURE

  • Design conforms to IEC 62271-202 standards
  • The compartmentalized construction prevents accidental entry to energized areas
  • Meets IP53/IP23 degree of protection
  • Tailored configuration to customer needs
  • Designed to withstand electrical impulses, thermal and dynamic stresses
  • Low power loss and low noise transformer
  • Number of feeders for LV can be customer specific
  • Easy to install
  • Delivery ready for commissioning
  • Modern manufacturing techniques ensure cost effectiveness, reliability and long trouble free performance

Types

  • 11KV / 33 KV
  • Oil Type transformer/ Dry type transformer

Applications

  • Industry,
  • Residential Societies,
  • Steel Industry,
  • Textile Industry,
  • Plastic Industry,
  • Cement Industry,
  • Refineries Industry,
  • Mining Industry,
  • Hydro Power Projects,
  • Wind Mill Farms,
  • Construction Houses,
