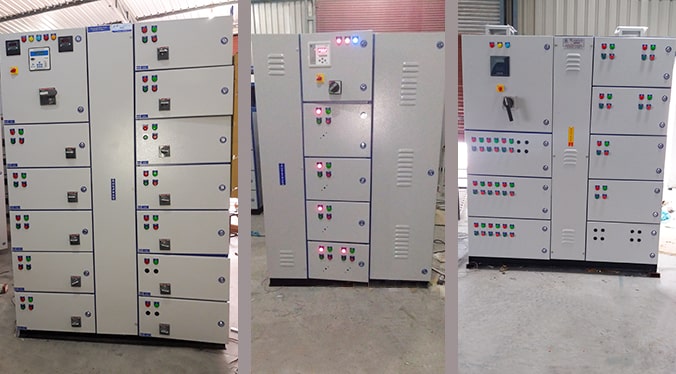

Automatic Power Factor Correction (APFC) PANEL

Automatic Power Factor Correction (APFC) PANEL

We manufacture highly efficient Automatic Power Factor Correction (APFC) Panels whose main purpose is to control or improve the power factor as the loading pattern of entire network of the industry /establishment changes from time to time.

Power factor is an important factor in measurement of electrical usage and a dip in power factor will lead to a penalty from the electricity utility company and also cause operational losses in the industry/establishment.

APFC panels automatically sense the change in load pattern through the microprocessor-based relay and compensates the change in power factor by connecting to the capacitor banks.

The APFC panels are designed as per the client’s specifications and the site demanding requirements which are highly reliable in sustaining the power factor from 0.95 to 0.99.

Category:

Panel Specifications

Voltage 380/415/440V, 50 Hz, 3 Phase, 4 Wire AC System
Construction Type Wall Mounted / Cubicle Design / Floor Standing
Enclosure Fabricated with 1mm/1.6mm/2mm/2.5mm/3mm CRCA MS sheet
Degree of Protection IP 4X/5X/6X
Busbar Electrolytic Grade Aluminium / Electrolytic Grade Copper / Tinned Electrolytic Grade Copper –provided with colored PVC sleeves & of standard current density (1A/sq.mm for Aluminium & 1.6A/sq.mm for Copper) or customer specified current density
Enclosure Color RAL 7032 Shade (Industrial Standard) / Customer Specified Color



Features

  1. Reduces Harmonic current.
  2. Relentlessly maintains power factor,
  3. Power Factor Correction achieved by Multi Step Design.
  4. Easy installation

Used In

  1. Various Industries Having Numerous
  2. Chemical Plants
  3. Manufacturing Units
  4. Pharmaceutical Plants
