DG SYNCHRONIZATION PANEL

DG SYNCHRONIZATION PANEL

Diesel Generator synchronization is the process of matching technical electrical parameters such as voltage, frequency, phase angle, phase sequence, and waveform of Diesel generator with a healthy or running power system.

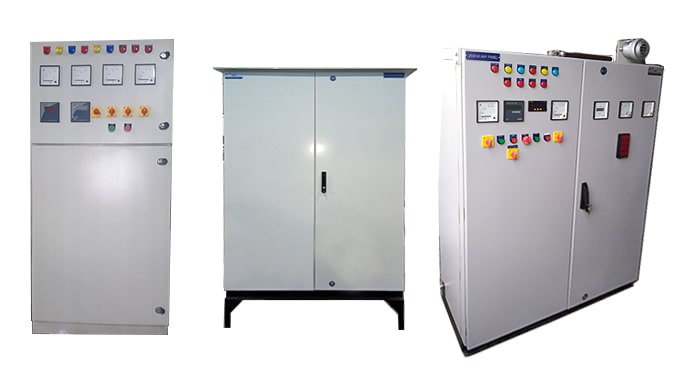

We are actively engaged in manufacturing of high-performance DG Synchronization Panel which comes complete with Controlling & Protection Relays capable of synchronizing of more than one DG sets / with Mains & DG and with necessary protections.

The offered product is precisely designed and manufactured by utilizing optimum quality raw material and sophisticated technology. Furthermore, we offer this DG Synchronization panel in various technical specifications at affordable prices.

Category:

Specification

Applications Control, Synchronizing, Load Sharing/Load management of DG Sets through control relay with or without PLC based cum manual
System 3 Phase, 3 or 4 wire, 50Hz
Rated Current Upto 6300 Amps
Operational Voltage 110/230v 415v AC
Rated Insulation 1000v
Rated Service Voltage 690v
Ambient Temperature 45 Deg C
Short Time Current 50KA for 1Sec 105KA peak
Degree of Protection IP42, 54, 55, 65 as per Custom Requirement
Form of Sepration Upto 3B/4B (Optional Type 5)
Type Tested for Short Time Current withstand Temperature Rise Degree of Protection
Bus Bar Aluminium or Copper
Ref. Standard IEC60439-1&2, IS:8623
Feeder Configuration Drowout or Fixed, Extendable Type



Features

  1. Durability & Reliability
  2. Affordable Rates
  3. Premium Quality
  4. Timely Delivery

Benefits

  1. Easy to use interface for control and monitoring
  2. Improve voltage fluctuation and fault prevention.
  3. Automatic load-sharing and generator-to-generator switching
  4. The most effective use of many generators lowers fuel consumption
  5. Improve power quality, avoid overloads, and effectively regulate loads
