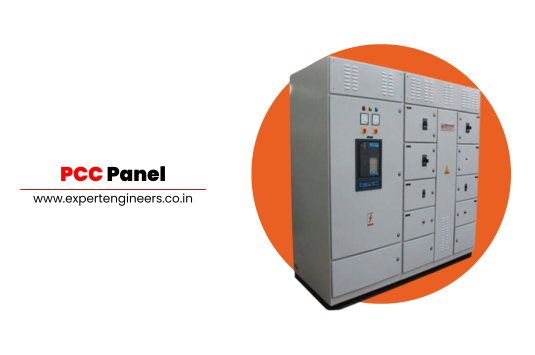

Power Control Center (PCC) Panel

Power Control Center (PCC) Panel

Power Control Centers (PCC) Panel, in which your main incomer is directly connected to your LT transformer either by bus duct or cable & all protection given to this incomer i.e. over current, earth fault, short circuit, restricted earth fault relay. Also, this panels have DG incomer as per client requirement of continues power supply even if main supply will be OFF. PCC Panel also includes outgoing feeders like PDB, MLDB and APFC & MCC feeders incomer.

Category:

Panel Specifications

Voltage 380/415/440V, 50 Hz, 3 Phase, 4 Wire AC System
Construction Type Cubicle Design / Floor Standing with Single/Double Front for Operation
Enclosure Fabricated with 1mm/1.6mm/2mm/2.5mm/3mm CRCA MS sheet
Degree of Protection IP 4X/5X
Busbar Electrolytic Grade Aluminium/ Electrolytic Grade Copper / Tinned Electrolytic Grade Copper –provided with colored PVC sleeves & of standard current density (1A/sq.mm for Aluminium & 1.6A/sq.mm for Copper) or customer specified current density
Enclosure Color RAL 7032 Shade (Industrial Standard) / Customer Specified Color

Key Specifications

  1. High endurance 5
  2. Easy to maintain
  3. Efficient power utilization
  4. Robust structure
  5. CPRI approved 1
  6. Better controllability
  7. Hassle-free operation
  8. Available in different technical specifications
  9. Designed with main panels that are either of draw out or non-draw out type
  10. Cubical panels depending on the type of application
  11. CPRI Certified products
  12. Made in single front design Integration of all necessary protections to meet safety standards

Benefits

  1. Power Distribution
  2. Safe use
  3. Cost Effective
  4. Easy to maintain

Key Features

  1. Trusted and verified
  2. Single to three-phase available
  3. Comes in the different IP rating
  4. It can be used in PLC automation, ACDB, generator, motor control, submersible pump, etc.
  5. Available in different materials like sheet metal, stainless steel, power coated sheets, etc.
  6. Provides capacity up to 1000 Amps

Used In

  1. Chemical Plant
  2. Gas Plant
  3. Food processing Units
  4. Power Plants
  5. Oil Plants
  6. Manufacturing Industries
  7. Cold Storage Units
